The recent Nanjing Petroleum and Petrochemical Industry Exhibition served as a pivotal stage for innovation, with LONTREX emerging as a standout performer. The company’s showcase of its indigenously developed 90MPa diaphragm compressor technology sent ripples through the energy sector, signaling a transformative moment for China's hydrogen infrastructure. This isn't merely an incremental improvement; it represents a critical leap in overcoming one of the most significant bottlenecks in the hydrogen value chain: the efficient, safe, and high-pressure compression of hydrogen gas for storage and dispensing. This comprehensive analysis delves into the technical specifications, strategic implications, and far-reaching applications of this groundbreaking equipment.
To appreciate the significance of LONTREX's achievement, one must first understand the role of compression in the hydrogen ecosystem. Hydrogen, despite having the highest energy content by mass of any fuel, has a very low energy density by volume at ambient conditions. To make it economically viable for transportation and storage, it must be compressed to extremely high pressures.
For Fuel Cell Vehicles (FCVs), the global standard is rapidly shifting towards 70MPa onboard storage tanks to extend driving range and enhance performance. To rapidly fill these tanks to their full capacity within a few minutes—a key requirement for consumer acceptance—the dispensing pressure at the station must be even higher, typically 87.5MPa or above. This is where a 90MPa (approximately 13,000 psi) compressor becomes not just an advantage, but a necessity. It is the core component that enables the high-throughput, fast-fill hydrogen stations required to support a thriving FCV market. Prior to this development, such high-pressure compressor technology was largely dominated by a few international players, creating supply chain dependencies and cost barriers.

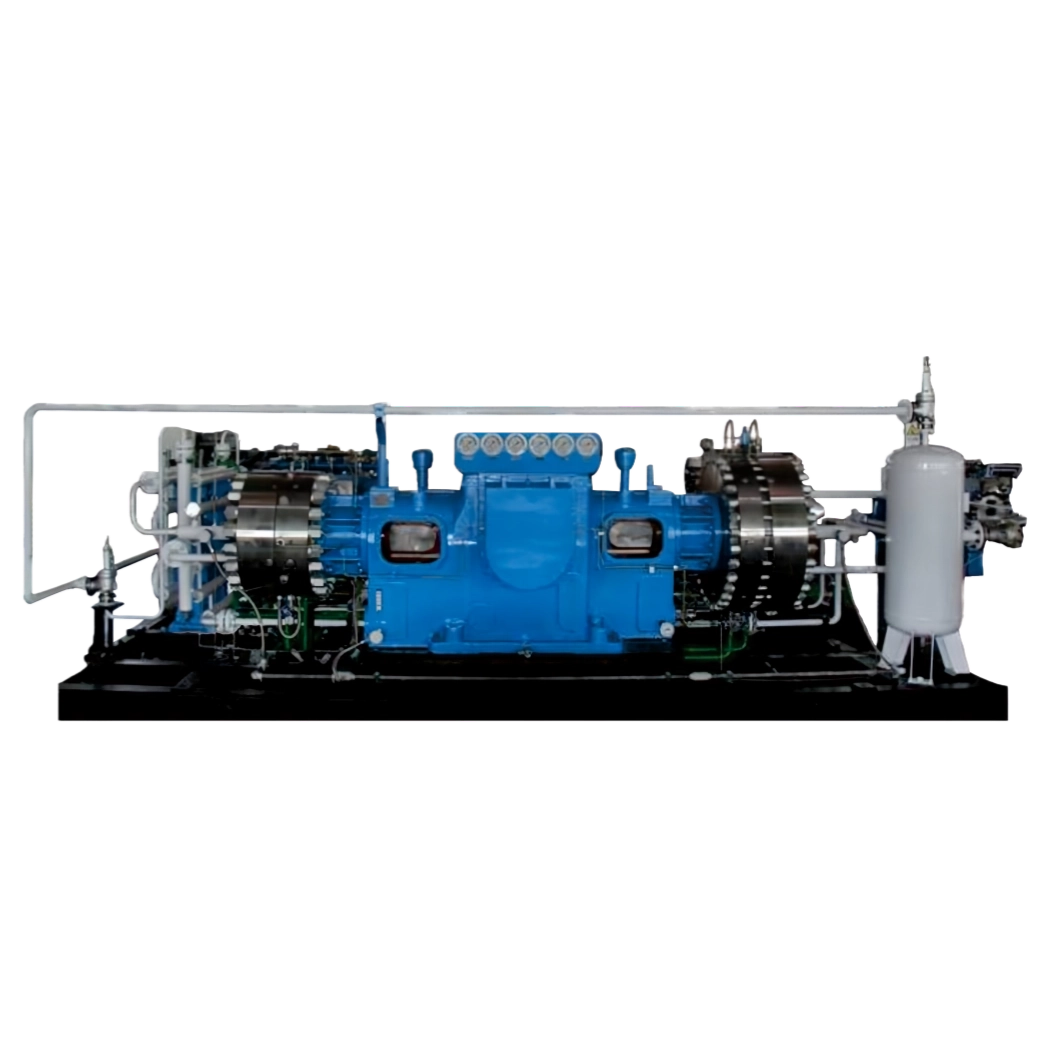

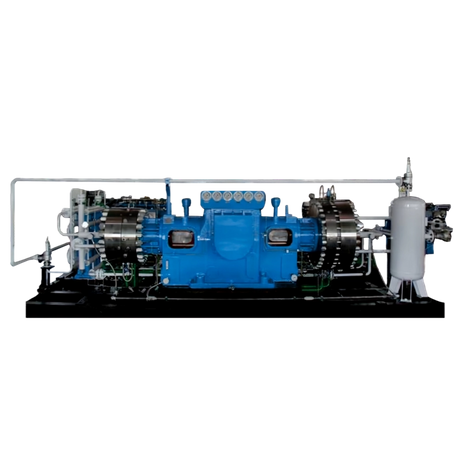

LONTREX's 90MPa diaphragm compressor is engineered to meet these rigorous demands with a suite of advanced features that ensure performance, purity, and reliability.
1. The Diaphragm Compression Principle: A Paradigm of Purity and Safety

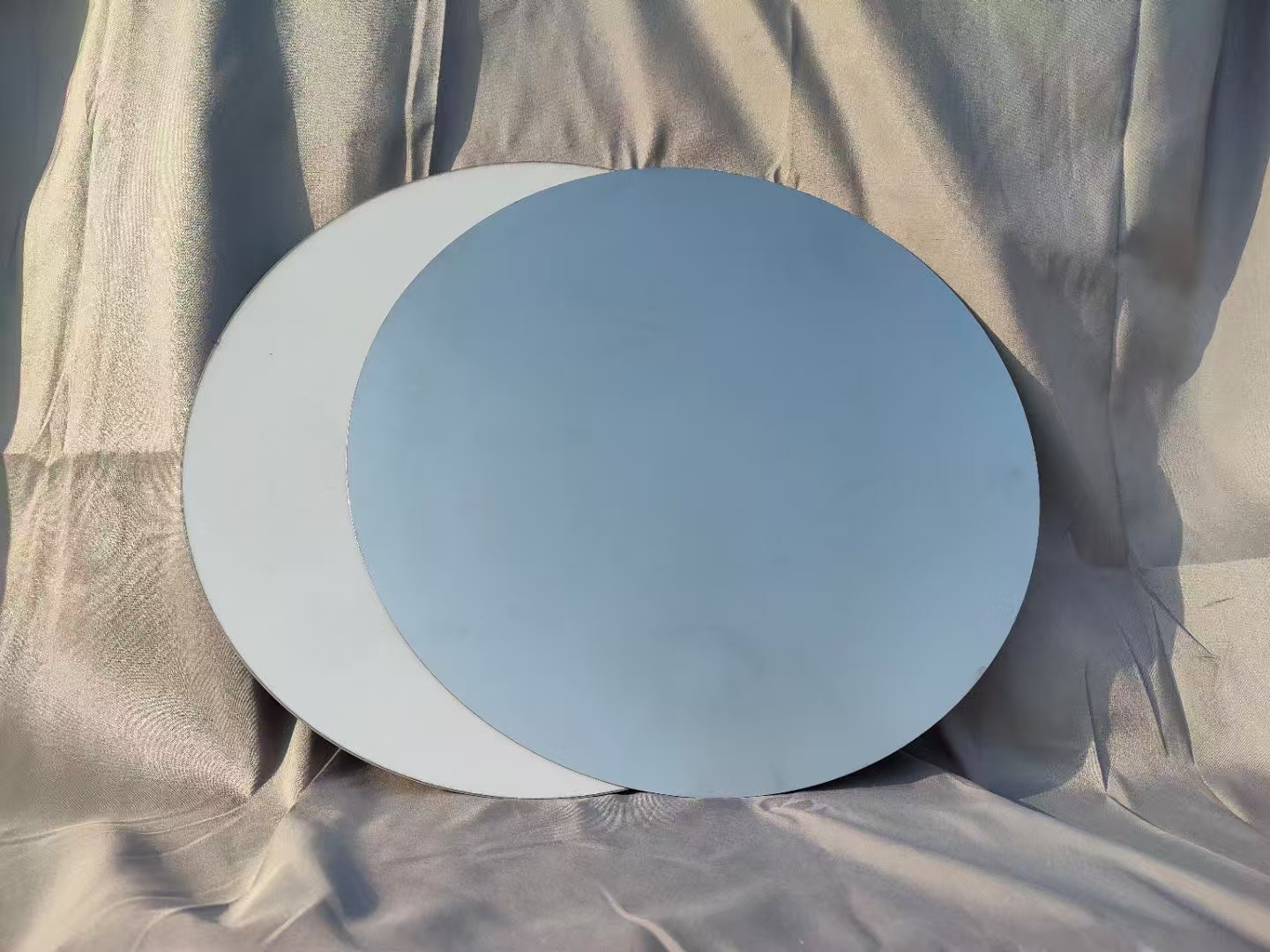

At the heart of this technology lies the metal diaphragm, a critical component that separates the process gas (hydrogen) from the hydraulic fluid. The compressor operates through a reciprocating piston that pressurizes hydraulic oil. This oil, in turn, flexes a meticulously engineered, multi-layered metal diaphragm in a pulsating motion. The diaphragm's deflection creates a variable volume on the gas side, drawing in low-pressure hydrogen and then compressing it to the extreme 90MPa output.
This mechanism offers several decisive advantages:
Absolute Gas Purity: The hermetic seal provided by the diaphragm ensures that the high-purity hydrogen is completely isolated from the hydraulic oil and any lubricants. This is paramount for protecting the sensitive catalysts within fuel cells, as even trace contamination can cause irreversible damage and performance degradation.
Leak-Free Operation: Unlike piston rings or seals in reciprocating compressors, the diaphragm provides a near-perfect seal, virtually eliminating the risk of hydrogen leakage. This is a critical safety feature, given hydrogen's high flammability and low ignition energy.
Multi-Stage Compression for Efficiency: Achieving 90MPa in a single stage is thermally inefficient and mechanically stressful. LONTREX’s compressor employs a multi-stage compression process. Hydrogen is compressed incrementally through multiple stages, with intercooling between each stage. This approach manages the heat of compression, improves overall efficiency, reduces thermal stress on components, and ensures a more stable and controllable output.
2. System Integration and Robust Design
Beyond the core compression module, the system is designed for real-world reliability and ease of use.
Structural Integrity and Cooling: The compressor is built to withstand immense cyclical pressures. The crankcase, cylinder heads, and diaphragm heads are constructed from high-strength materials capable of enduring fatigue. An advanced cooling system, often involving integrated water jackets, efficiently dissipates the substantial heat generated during compression, ensuring consistent performance and extended component life.
Advanced Monitoring and Control: The system is undoubtedly equipped with a sophisticated suite of sensors and a programmable logic controller (PLC). This system continuously monitors critical parameters such as pressure at each stage, temperature, diaphragm integrity, and vibration. In the event of any anomaly, the system can initiate automatic shutdowns to prevent damage and ensure operational safety.
LONTREX’s vision extends beyond a single product; it aims to provide solutions that cover the entire hydrogen lifecycle.

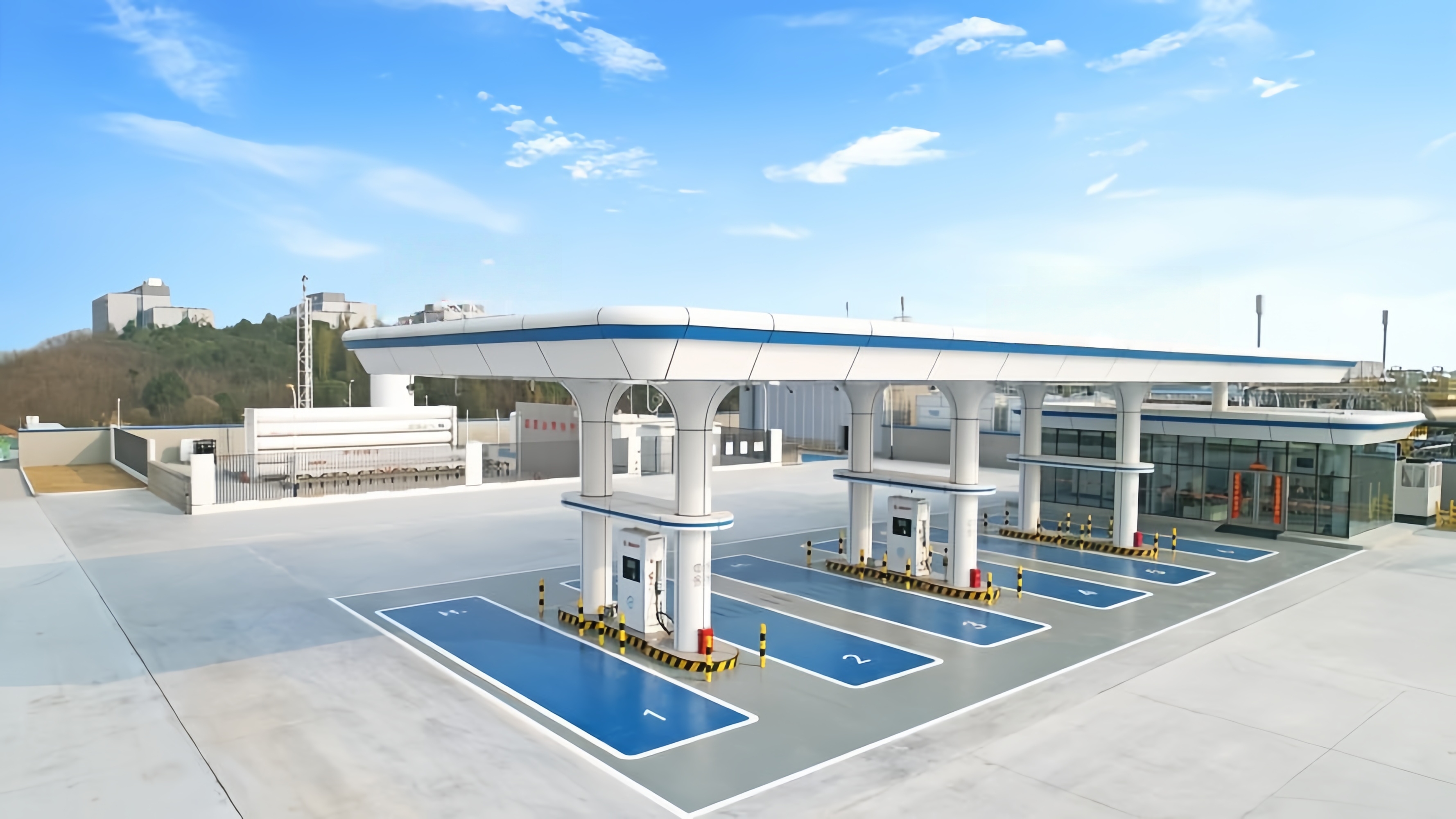

The Backbone of High-Capacity Hydrogen Refueling Stations (HRS): This is the primary application. The 90MPa compressor is the central component of any station aiming to serve passenger FCVs and, in the future, heavy-duty trucks and buses. Its ability to deliver gas at the required pressure and purity makes it indispensable for building a widespread and reliable refueling network. It is fully compatible with the stringent requirements for high-pressure hydrogen filling stations, enabling the fast, 3-to-5-minute refueling experience that drivers expect.
Enabling Hydrogen Storage and Transport: In addition to direct refueling, this compressor can be used for high-pressure hydrogen filling into tube trailers or stationary storage units. This is crucial for balancing production and demand, allowing for the economic transport of hydrogen from production sites (like green hydrogen electrolyzers) to distant points of use.
Specialized Industrial Applications: The compressor's inherent characteristics make it ideal for other demanding industrial sectors. Its compact footprint and exceptional sealing performance render it perfectly suited for handling a variety of high-purity, toxic, or flammable gases in the chemical, petrochemical, and electronics industries. Whether it's compressing rare gases for semiconductor manufacturing or handling aggressive media in specialized chemical synthesis, the technology offers a safe and contamination-free solution.
Perhaps the most strategically significant aspect of LONTREX's announcement is the claim of 100% domestic core components. This achievement cannot be overstated. For years, the global hydrogen compressor market, especially for high-pressure applications, has been constrained by technological monopolies held by a handful of Western companies. This reliance created several challenges for China's burgeoning hydrogen industry:
High Capital Costs: Imported equipment carries a significant price premium.
Long Lead Times and Supply Chain Vulnerability: Procurement was subject to international logistics and geopolitical tensions.
Limited Customization and Service Support: Local technical support and spare parts availability were often limited.
By mastering the entire manufacturing process—from the metallurgy of the diaphragms and the precision machining of the hydraulic systems to the development of the control software—LONTREX has effectively shattered this foreign monopoly. This breakthrough:
Builds an Autonomous and Controllable Hydrogen Equipment Industry: It secures a critical link in the domestic supply chain, insulating China's hydrogen ambitions from external disruptions.
Drives Down Costs: Local production inherently reduces costs through lower logistics expenses, economies of scale, and the absence of import tariffs, making hydrogen infrastructure more affordable to deploy.
Accelerates Innovation and Customization: With full control over the technology, LONTREX and other domestic players can now iterate and innovate more rapidly, tailoring products to the specific needs of the Chinese market and developing next-generation solutions.
LONTREX's presentation at the Nanjing exhibition was far more than a product launch; it was a declaration of technological sovereignty and a vision for a comprehensive hydrogen future. The 90MPa diaphragm compressor is a masterfully engineered piece of equipment that directly addresses the critical needs of safety, purity, and high-pressure performance required for a mature hydrogen economy. Its ability to seamlessly integrate into the entire value chain, from production to end-use, positions it as a foundational technology.
Most importantly, the complete domestic production of its core components marks a watershed moment. It empowers China to build its hydrogen infrastructure on its own terms, fostering a resilient and competitive domestic industry. As nations worldwide race to decarbonize their transport and industrial sectors, the availability of reliable, affordable, and homegrown technologies like LONTREX's compressor will be a decisive factor in determining the pace and scale of the transition to a clean hydrogen future. This innovation is not just compressing hydrogen; it is compressing the timeline for a global energy transformation.
