Reciprocating Compressor Failure Analysis: A Methodical Approach

Systematic Failure Analysis Methodology

Step 1: Precise Description of Fault Phenomena (The Fact Starting Point)

   1.  Operational Parameter Anomalies: Record exact data at the time of failure and trends leading up to it: Discharge Pressure/Temperature, Suction Pressure/Temperature, Stage Pressure Ratios, Cooling Water Temperature/Pressure, Lubrication Oil Pressure/Temperature, Motor Current/Voltage.

   2.  Abnormal Sounds and Vibration: Describe sound type (sharp knocking, dull impact, rubbing, gas pulsation) and location (cylinder, crosshead, valve,  bearings). Note changes in vibration amplitude and frequency.

   3.  External Visual Indicators: Document and photograph/video oil leaks, coolant leaks, gas leaks, abnormal carbon buildup, overheating/discoloration of components, loose connections.

   4.  Performance Degradation: Record specific values and historical trends for reduced discharge capacity, increased energy consumption, degraded gas quality (e.g., excessive oil or moisture content), and automatic shutdowns (e.g., due to high temperature, high pressure, low oil pressure).

Step 2: Multi-Dimensional Evidence Collection (Sources of Facts)

   1.  Analysis of Historical Operation & Maintenance Records:

     Review operational logs, maintenance reports, spare part replacement records. Verify facts regarding any historical improper operation, overdue service, or use of non-compliant parts/lubricants.

     Analyze the frequency of failures and correlation with specific operations (e.g., start/stop cycles, load changes).

   2.  Online Monitoring & Process Data Trend Analysis:

     Export and analyze historical trend curves from Process Control Systems (DCS/SCADA).Observe the gradual or sudden changes in all relevant parameters before, during, and after the failure. This is one of the most critical sources of objective evidence.

     Analyze online vibration data (spectra, waveforms) to identify characteristic frequencies, diagnosing faults like unbalance, misalignment, looseness, or bearing/piston rod wear.

   3.  Static Inspection After Shutdown (Visual & Measurable Evidence):

     Pre-Disassembly Checks: Alignment re-check, foundation bolt tightness, coupling condition.

     Critical Component Teardown Inspection (Core Evidence Source):

         Valves: Inspect valve plates and springs for breakage, deformation, wear patterns; check sealing surfaces for carbon deposits, wear, corrosion pitting; measure clearances with feeler gauges against specifications. This is the most common failure point. Photograph all findings.

          Piston Assembly: Measure piston ring and rider ring wear, end gaps, and side clearances; check for breakage, scoring, carbon sticking; inspect piston rod for wear, scoring, and straightness.

          Cylinder & Packing: Inspect liner bore for scoring, galling, wear steps; check packing rings for wear, aging, breakage.

          Crosshead & Connecting Rod Mechanism: Check crosshead shoes, connecting rod bearings (big end and small end) for clearance, wear, spalling, heat discoloration; check connecting rod bolts for proper stretch or torque.

          Lubrication System: Perform oil analysis on a sample. Test for wear metal composition, size, and concentration (to pinpoint wear location), and for oil degradation (viscosity, acid number, water content).

    4.  Professional Testing & Material Analysis (In-Depth Facts):

     Non-Destructive Testing (NDT): Perform Magnetic Particle (MT) or Ultrasonic Testing (UT) on critical load-bearing parts (e.g., connecting rods, piston rods, crankshaft) to detect internal or surface cracks.

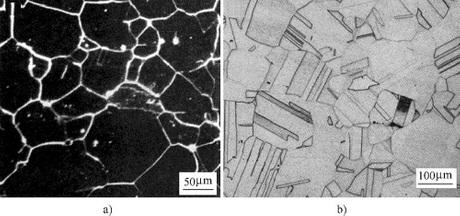

     Material Failure Analysis: For fractured parts (e.g., valve plate, rod bolts), conduct fractography (SEM analysis of fracture surface), metallographic examination, hardness testing, chemical analysis to scientifically determine failure mode (fatigue, overload, stress corrosion cracking).

Step 3: Failure Mode & Root Cause Reasoning (Logical Linking of Facts)

Correlate all collected factual evidence to construct the failure sequence chain:

   Example 1 (High Discharge Temperature):

     Fact: Secondary discharge temperature gradually increased → Teardown reveals broken suction valve plate in second stage.

     Logic Chain: Broken valve plate → Valve fails to seal → Hot discharge gas leaks back into cylinder during compression → Inlet gas is preheated → Compression starting temperature rises → Final discharge temperature increases. Potential Root Cause: Valve plate material defect (requires material analysis to verify), failed spring causing delayed closure and impact, or liquid slugging from process gas.

   Example 2 (Abnormal Knocking Sound):

     Fact: Periodic metallic knocking at cylinder, increased vibration → Measured piston end clearance is significantly less than design → Piston rod straightness exceeds tolerance.

     Logic Chain: Bent piston rod → Piston travels off-center → Actual piston end clearance is reduced → Mechanical contact occurs between piston and cylinder head. Potential Root Cause: Piston rod subjected to abnormal lateral force (e.g., from crosshead misalignment), foundation settlement causing frame misalignment, or a manufacturing defect in the piston rod itself.

Step 4: Verification & Reporting

1.  Cross-Verification: Use different evidence sources to confirm the same hypothesis. For example, vibration spectra indicating piston rod looseness should be corroborated by physical evidence of worn packing.

2.  Compile Analysis Report: The report structure must include:

     Failure Phenomenon Description (Facts)

     Evidence List (Data, Photographs, Test Reports)

     Failure Mechanism Analysis (Fact-based reasoning)

     Identified Root Cause(s)

     Corrective & Preventive Actions (e.g., revise operating procedures, improve inspection standards, change spare part suppliers, modify system design flaws).

Summary of Common Analysis Techniques (Fact-Based Tools)

Vibration Analysis: Diagnoses mechanical faults (unbalance, misalignment, looseness, bearing wear, valve leakage).

Thermal Imaging Analysis: Identifies overheating points (e.g., blocked cooling lines, loose electrical connections, overheated bearings).

Performance Analysis: Uses pressure ratios, temperatures, and flow rates to calculate efficiency and diagnose internal leakage (e.g., faulty piston rings, leaking valves).

Oil Analysis: Diagnoses internal wear condition and lubricant health.

Motor Current Analysis: Diagnoses load variations and mechanical binding.

In conclusion, proper reciprocating compressor failure analysis is a scientific process of "hypothesis formulation - factual evidence gathering - hypothesis verification or rejection." It strictly prohibits conjecture based solely on experience. All conclusions must be supported by traceable, objective evidence.
