Natural gas compressors are the critical power source for pipeline transmission networks, whose operational stability directly impacts the safety and efficiency of the entire gas supply system. This guide provides a systematic framework for addressing compressor failures, shifting from reactive repairs to proactive management. It begins by linking common failure modes to the fundamental operating principles of reciprocating, screw, and centrifugal compressors. A core diagnostic section details eight prevalent issues—from failure to start and loss of pressure to abnormal vibration and high discharge temperature—presenting their root causes and step-by-step resolution protocols in a structured table format. The guide further advocates for building a robust, multi-layered preventive maintenance system encompassing data-driven daily inspections, strict periodic maintenance, and the integration of predictive technologies like vibration analysis. A concluding case study demonstrates the systematic troubleshooting process, emphasizing the importance of identifying the fundamental cause within a failure chain. Ultimately, this resource aims to equip operations and maintenance teams with the knowledge to enhance reliability, extend equipment life, and ensure the safe, continuous operation of gas transmission infrastructure.
Full Guide
Chapter 1: Core Principles and the Root of Failures
Understanding the equipment's working principle is foundational to effective troubleshooting. Natural gas compressors operate primarily on either positive displacement (e.g., reciprocating, screw) or dynamic (centrifugal) principles to increase gas pressure through mechanical work. Reciprocating compressors use a piston's (reciprocating motion) within a cylinder, offering robustness for medium-to-high pressure and variable conditions. Screw compressors utilize the meshing rotation of male and female rotors for continuous compression, characterized by smooth operation and lower noise. Centrifugal compressors impart kinetic energy via a high-speed impeller, converting it to pressure, suitable for high-flow applications.
All failures are directly or indirectly related to its core components: the compression chamber (cylinders, rotors), power transmission (crankshaft, bearings, couplings), auxiliary systems (lubrication, cooling, control), and sealing units. An abnormality in any link can lead to performance degradation or failure.
Chapter 2: Precision Diagnosis and Response Strategies for Eight Common Faults
The table below systematically outlines the most common failure symptoms, their potential underlying causes, and standard response procedures, serving as a field quick-reference guide.
Fault Symptom | Potential Causes | Diagnosis & Solution Steps |
Failure to Start | Power supply fault; Motor protection trip; Control system interlock active (e.g., low lube oil pressure, insufficient coolant flow). | 1. Check Electrical Circuit: Verify supply voltage, inspect breakers and motor insulation. |
2. Review Interlock Signals: Confirm all safety permissives (oil pressure, water temp, instrument air) are satisfied. | ||
3. Hand-Turn Rotor: Check for mechanical binding in the compressor host. | ||
Insufficient Discharge Flow/Pressure | Clogged intake filter; Leaking or damaged valve (reciprocating); Excessive rotor clearance due to wear (screw); Internal leakage (seal failure). | 1. Monitor Operating Parameters: Compare current, stage pressures & temperatures against historical data. |
2. Inspect Intake System: Clean or replace filter elements. | ||
3. Conduct Performance Test: e.g., "Pressure Rise Test" for reciprocating units or internal leakage check for screw compressors. Repair or replace valves/seals accordingly. | ||
Abnormal Vibration & Noise | Loose foundation; Misalignment; Bearing wear; Rotor imbalance (centrifugal); Liquid slugging or foreign object ingestion. | 1. Vibration Analysis: Use a vibrometer to locate source and analyze spectrum. |
2. Mechanical Check: Re-tighten foundation bolts, perform laser shaft alignment correction. | ||
3. Internal Inspection: Check bearing clearance and rotor condition, remove any liquid or debris. | ||
Excessively High Discharge Temperature | Reduced cooling system efficiency (fouled cooler, blocked air cooler); Abnormal coolant flow/temperature; Valve fault causing abnormal compression ratio increase. | 1. Check Cooling System: Clean heat exchangers, ensure coolant flow & temperature meet design specs. |
2. Analyze Temperature Profile: Compare discharge temps at each stage; an anomaly often points to valve or piston ring issues in that stage. | ||
3. Inspect Thermostatic Valves. | ||
Abnormal Lube Oil Pressure/Temperature | Low oil level; Clogged oil filter; Oil pump failure; Low oil cooler efficiency; Degraded lubricant. | 1. Check Oil Circuit: Check oil level, replace oil filter, test oil pump outlet pressure. |
2. Oil Analysis: Sample to test viscosity, water content, and contamination. Change oil based on condition. | ||
3. Clean Oil Cooler. | ||
Control System Failure | Sensor (pressure/temperature transducer) drift or failure; PLC module fault; Sticking actuator (e.g., control valve); Signal interference. | 1. Calibrate Sensors: Compare field sensor readings against a master gauge. |
2. Check Control Loop: Test PLC I/O point status, inspect wiring terminals. | ||
3. Test Actuator: Perform manual/auto mode switching test for valve operation. | ||
Gas Leakage | Aging gaskets at static seals (flanges, blinds); Worn dynamic seals (piston rod packing, mechanical seal); External leakage from pipe welds or valves. | 1. Leak Detection: Use gas detector or soap solution on all seal points. |
2. Targeted Repair: Tighten bolts, replace gaskets or packing. Safety Note: Must be done after depressurization and purging. | ||
Excessive Pressure Fluctuation | Sharp downstream demand swings; Unstable suction pressure; Slow or oscillating response from regulation system (e.g., guide vanes, unloader valves). | 1. System Analysis: Determine if caused by external network disturbance or internal regulation issue. |
2. Tune Control Parameters: Collaborate with control engineers to adjust PID loop settings. | ||
3. Inspect Regulation Mechanism. |

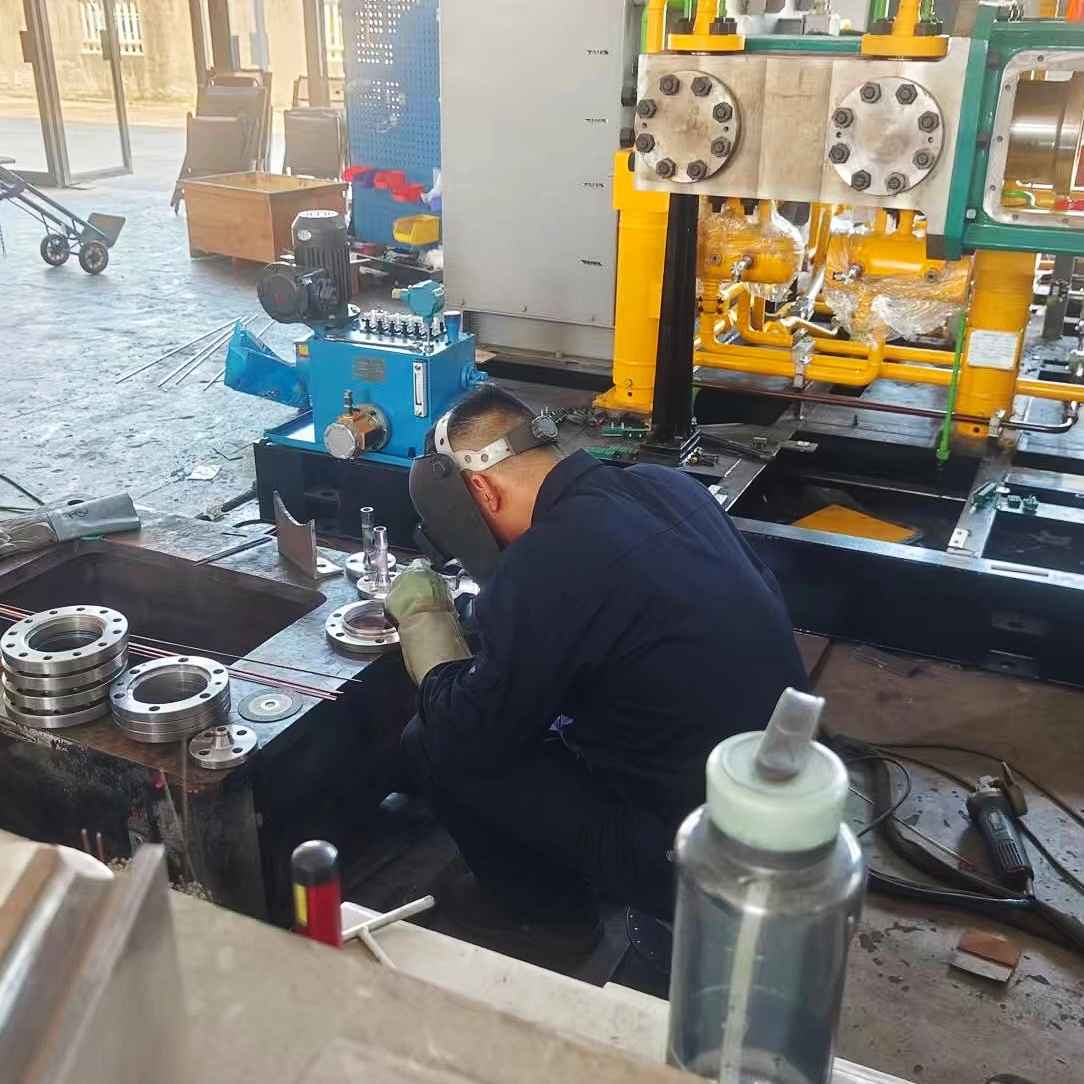

Chapter 3: From Reactive Repair to Active Defense: Building a Systematic Maintenance Regime
Prevention is far superior to cure. An effective maintenance system should include these layers:
1. Data-Driven Daily Inspections: Use checklists to record key parameters (pressure, temperature, vibration, oil level, unusual sounds). Subtle trend changes are often early warnings.
2. Strict Adherence to Periodic Maintenance:
Lubrication Management: Change oil strictly per manufacturer's intervals and specifications, complemented by regular oil analysis.
Filter Replacement: Adhere to scheduled replacement of air filters, oil filters, and oil-gas separators (screw compressors). Shorten cycles in harsh environments.
Valve & Seal Inspection: Valves and packing in reciprocating compressors are wear items and should be preventively replaced based on operating hours.
3. Planned Overhauls & Condition Monitoring: Schedule major overhauls based on runtime and technical condition. Proactively adopt predictive maintenance technologies like vibration monitoring, infrared thermography, and motor current analysis to accurately assess equipment health.
Chapter 4: Case Study: From Abnormal Vibration to Root Cause Resolution
A reciprocating compressor at a gas transmission station exhibited abnormal vibration and elevated temperature on the first-stage cylinder. Initial action involved only tightening foundation bolts, but the problem recurred weeks later.
Systematic Troubleshooting Process:
1. Vibration spectrum analysis showed the dominant frequency matched the piston's reciprocating frequency, with high-order harmonics present.
2. Inspection of the cylinder's valves revealed a slightly cracked intake valve plate, causing improper sealing and anomalous compression.
3. Further disassembly found that small fragments from the broken plate had entered the cylinder, causing minor scoring between the piston and cylinder wall—the root cause of the vibration.
Solution & Lesson Learned: All first-stage cylinder valves were replaced, and the cylinder liner was honed. This case demonstrates that a symptom (vibration) can have a chain of underlying causes. Simple tightening was insufficient; systematic diagnosis was needed to find and eliminate the source within the failure chain (the damaged valve plate).
Conclusion: Balancing Safety, Reliability, and Efficiency
Troubleshooting natural gas compressors is not merely about part replacement; it is an engineering practice integrating mechanical knowledge, systems thinking, and rigorous process. By establishing a management system with preventive maintenance at its core, condition monitoring as its tool, and standardized procedures as its foundation, unplanned downtime risks can be significantly reduced, equipment life extended, and the continuous, safe, and efficient operation of this critical infrastructure ultimately ensured. Each successful fault resolution not only restores production but deepens equipment understanding and strengthens the maintenance framework. Transforming experience into standards and reactivity into proactivity is the essential path to maintenance excellence.
