Screw Compressor Technical Overview: Working Principles, Evolution, and Performance Characteristics

1. Historical Development of the Screw Compressor

The technological evolution of screw compressors can be traced to the 1930s, marked by several key milestones:

    1934: Swedish engineer Alf Lysholm successfully developed the first prototype of a twin-screw gas compressor, laying the foundation for screw compression technology.

    1960s: The introduction of oil injection cooling enabled the application of twin-screw compressors in refrigeration systems. Around the same time, the Swedish company SRM developed an asymmetric rotor profile, significantly improving compressor efficiency.

    1960: French engineer Bernard Zimmern proposed the innovative design for a single-screw compressor, with the first prototype built two years later.

    Early 1970s: The Dutch company Grasso manufactured the first single-screw compressor for refrigeration systems, marking its transition to practical application.

    From 1972 onward: Japanese industry began adopting single-screw technology for air compression, expanding it to the refrigeration compressor market a decade later.

2. Working Principle of the Screw Compressor

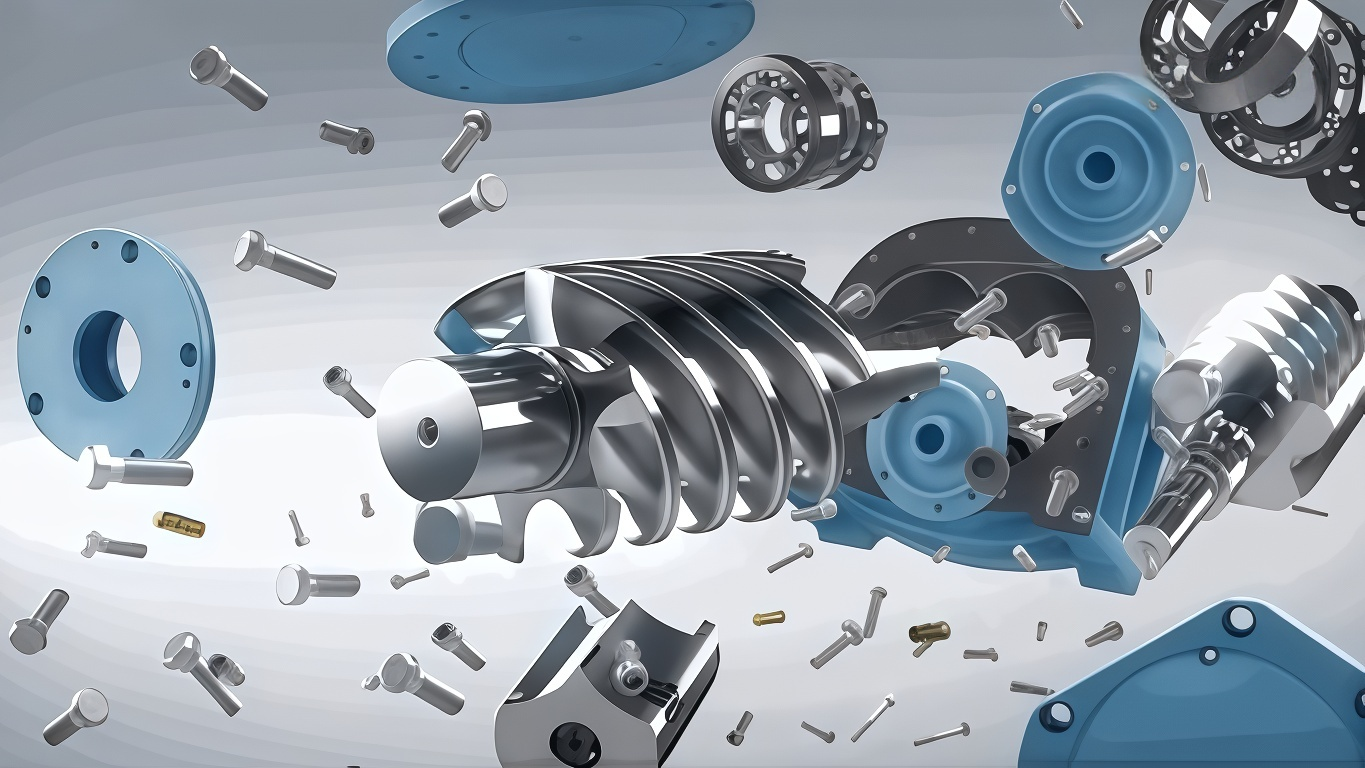

The core components of a screw compressor are a pair of parallel, intermeshing helical rotors—the male (driving) rotor and the female (driven) rotor. These rotate in opposite directions within a precisely machined housing, with clearances typically maintained between 0.05 and 0.10 mm. The male rotor is usually directly driven by an electric motor, while the female rotor is driven by torque transmitted from the male rotor or via an oil film, theoretically avoiding metal-to-metal contact.

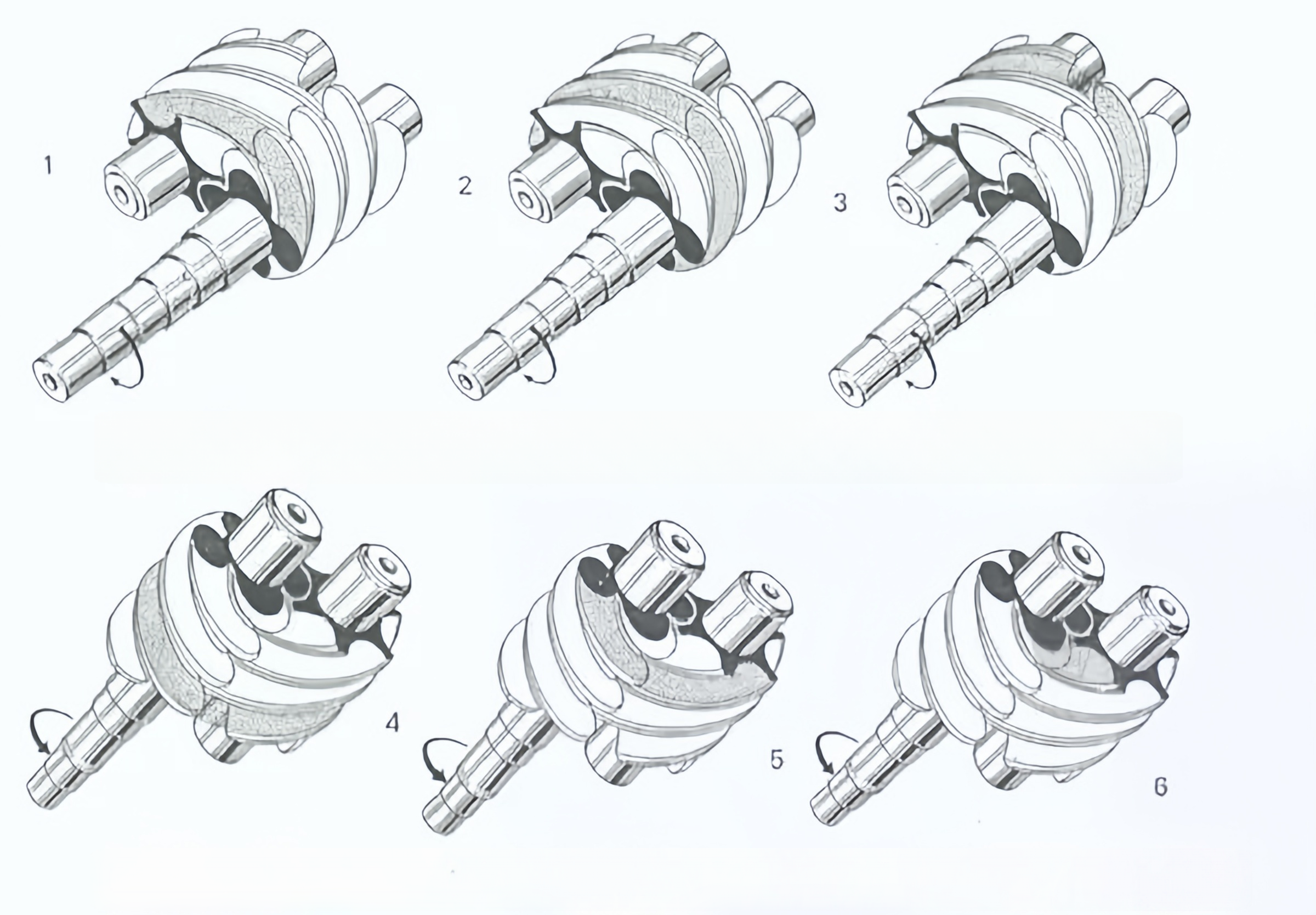

The working cycle consists of three main phases:

    1.  Intake/Induction: As the rotors turn, the volume between the rotor lobes increases as they move away from the suction port, drawing in gas.

    2.  Compression: Once the interlobe volume moves past the suction port, it becomes a sealed chamber enclosed by the housing walls. Further rotation reduces this volume, compressing the gas. Injected oil provides sealing, cooling, and lubrication during this phase.

    3.  Discharge: When the compressed oil-gas mixture reaches the designated pressure, the chamber connects with the discharge port, and the high-pressure gas is expelled.

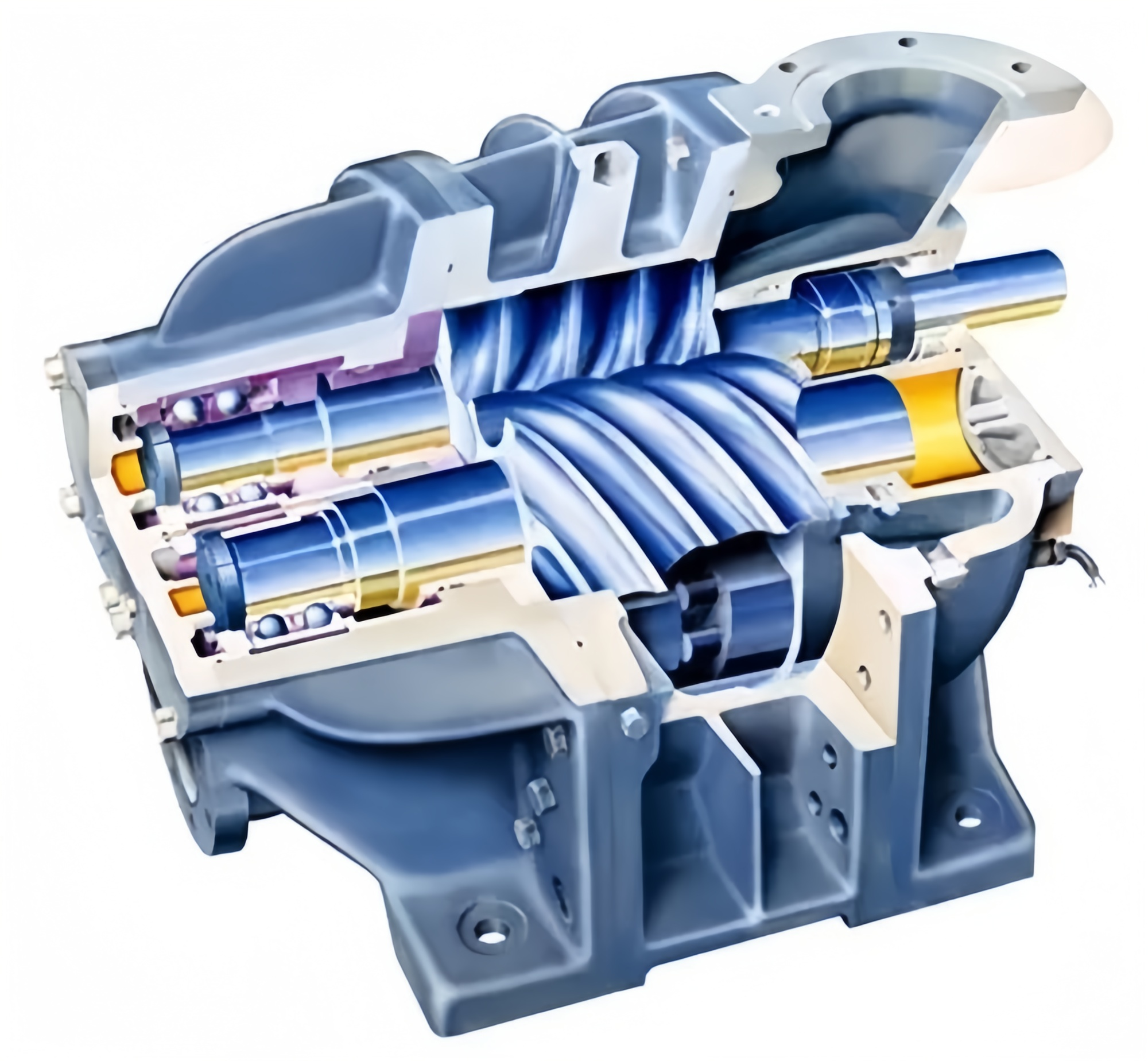

The rotors are supported and positioned by precision bearings. Thrust loads, especially at the discharge end, are typically handled by tapered roller bearings. The compressor's displacement (flow rate) and pressure capability are primarily determined by the rotor's geometric dimensions (length and diameter). Generally, a higher length-to-diameter ratio favors higher pressure, while a larger rotor diameter enables greater flow capacity.

3. Technical Advantages of Screw Compressors

Screw compressors offer several prominent advantages:

    High Operational Reliability: Simple structure with few moving parts and no wearing components like valves or pistons leads to long mean time between failures (MTBF) and major overhaul intervals of 40,000 to 80,000 hours.

    Ease of Maintenance: Low daily maintenance requirements and straightforward operation.

  Excellent Dynamic Balance: Smooth rotary motion results in minimal vibration, making them suitable for mobile applications or installations with less stringent foundation requirements.

    Strong Adaptability: Feature positive displacement characteristics, meaning flow rate is largely independent of discharge pressure. They maintain high efficiency across a wide operating range and are adaptable to various gases.

    Tolerance for Complex Media: The inherent clearance between rotors allows them to handle some liquid carryover, making them suitable for compressing wet gases, dusty gases, and gases prone to polymerization.

4. Limitations of Screw Compressors

Despite their advantages, screw compressors have inherent limitations:

    High Manufacturing Cost: The complex, three-dimensional rotor profiles require specialized machine tools and cutters for production, leading to high precision demands and significant initial investment.

    Limited Pressure Range: Constrained by rotor stiffness and bearing life, they are primarily used for medium- and low-pressure applications, with maximum discharge pressures typically not exceeding 3 MPa (30 bar).

    Less Economical at Low Flow Rates: Their performance advantages are most pronounced at higher volumetric flow rates (usually above 0.2 m³/min), making them less competitive for micro or very low-flow applications.

Conclusion

Screw compressor technology has advanced significantly over nearly a century in areas like design, materials, and control systems. A clear understanding of their working principles and technical characteristics is fundamental for proper selection and efficient application. Looking ahead, continuous improvements in manufacturing techniques and the adoption of new materials promise further enhancements in efficiency, reliability, and applicability, positioning screw compressors to provide even better compressed air and process gas solutions for diverse industrial sectors.
