Diaphragm Compressor: The Superior Solution for High-Purity, Hazardous, and High-Pressure Gas Compression

Thanks to its unique structural design, the diaphragm compressor is an indispensable piece of equipment for the compression and transfer of high-purity, rare, toxic, hazardous, and corrosive gases. Its applications continue to expand as industries demand ever-higher standards of gas purity and safety.

Core Application Areas

Diaphragm compressors are critical for high-end and demanding processes, including:

   Energy & Chemical: Nuclear power, petrochemicals, hydrogen compression and refueling.

   High-Tech Manufacturing: Electronics, semiconductor fabrication, new material synthesis.

   Life Sciences: Food & beverage processing, pharmaceutical manufacturing (ensuring oil-free, sterile environments).

   Research & Defense: Scientific research, defense projects, specialty gas handling.

Working Principle & Key Advantages

A diaphragm compressor is a specially designed positive displacement compressor. Its core function relies on a hydraulically driven metal diaphragm that flexes to compress gas within an isolated chamber, ensuring zero contact between the gas and lubricating oil.

Main components include: Drive motor, crankshaft-connecting rod mechanism, cylinder assembly (with metal diaphragm), hydraulic and gas piping systems, and an intelligent control unit.

This design delivers unmatched advantages:

1.  Absolutely Pure Compression: Complete isolation of gas from oil guarantees oil-free, dry, and contaminant-free gas delivery, making it the only choice for high-purity applications.

2.  Exceptional Sealing & Safety: Static metal seals offer extremely low leakage rates, providing exceptional safety for flammable, explosive, toxic, or precious gases.

3.  High Compression Ratio & Efficiency: The near-isothermal compression process allows a single-stage compression ratio as high as 25, enabling easy achievement of ultra-high pressures (exceeding 100 MPa).

4.  Cost-Effective & Reliable Operation: Compact design requires less maintenance than oil-lubricated piston compressors, eliminating the need for expensive oil removal filters and frequent specialty oil changes, resulting in lower lifetime operating costs.

Key Performance & Classification

  Performance Range: Hydraulically driven compressors with metal diaphragms can achieve a flow capacity of up to 100 m³/h and discharge pressures exceeding 100 MPa with multi-stage compression.

  Diaphragm Lifespan: The critical metal diaphragm (typically 0.3-0.5 mm thick) lifespan depends on material and craftsmanship, with high-quality diaphragms ensuring tens of thousands of hours of stable operation.

  Primary Classification:

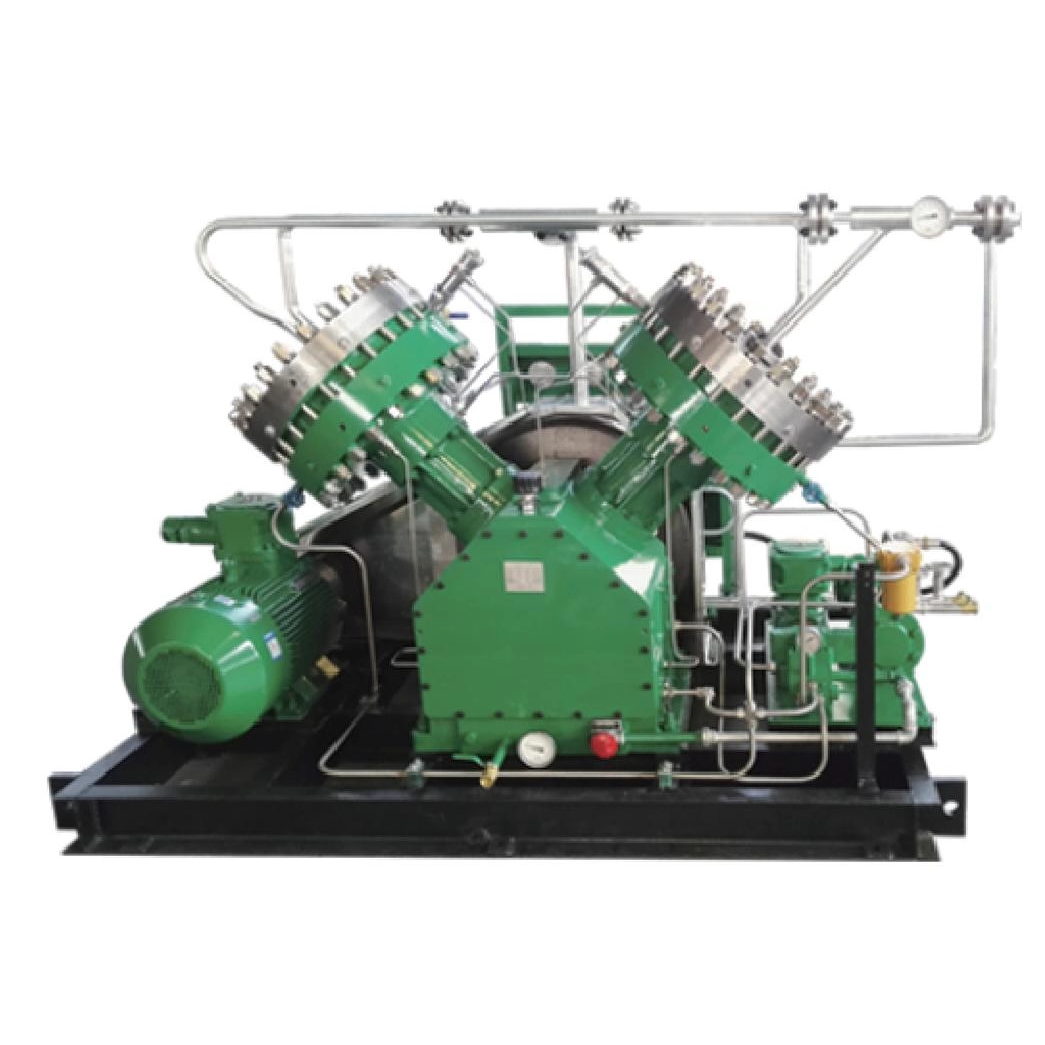

  By Structure: Z-type, V-type, D-type, symmetrically balanced type, etc.

  By Cooling Method: Water-cooled, air-cooled, natural cooling.

  By Lubrication: Pressure lubrication, splash lubrication.

Whether supplying ultra-high-purity gas for a lab, handling toxic media in a chemical plant, or compressing high-pressure hydrogen at a refueling station, the diaphragm compressor stands as the authoritative solution in high-end gas compression, delivering absolute purity, ultimate safety, and reliable performance.
